Description
With the brake of the Ultimate+ pedals being able to cope with forces as experiences in real life racing cars (up to 140kg), a sturdy, reliable mount is crucial for your simulator setup. Standard rigs often show excessive flex under these loads. This baseplate is designed to show zero flex under load, while maintaining flexibility when it comes to positioning individual pedals.

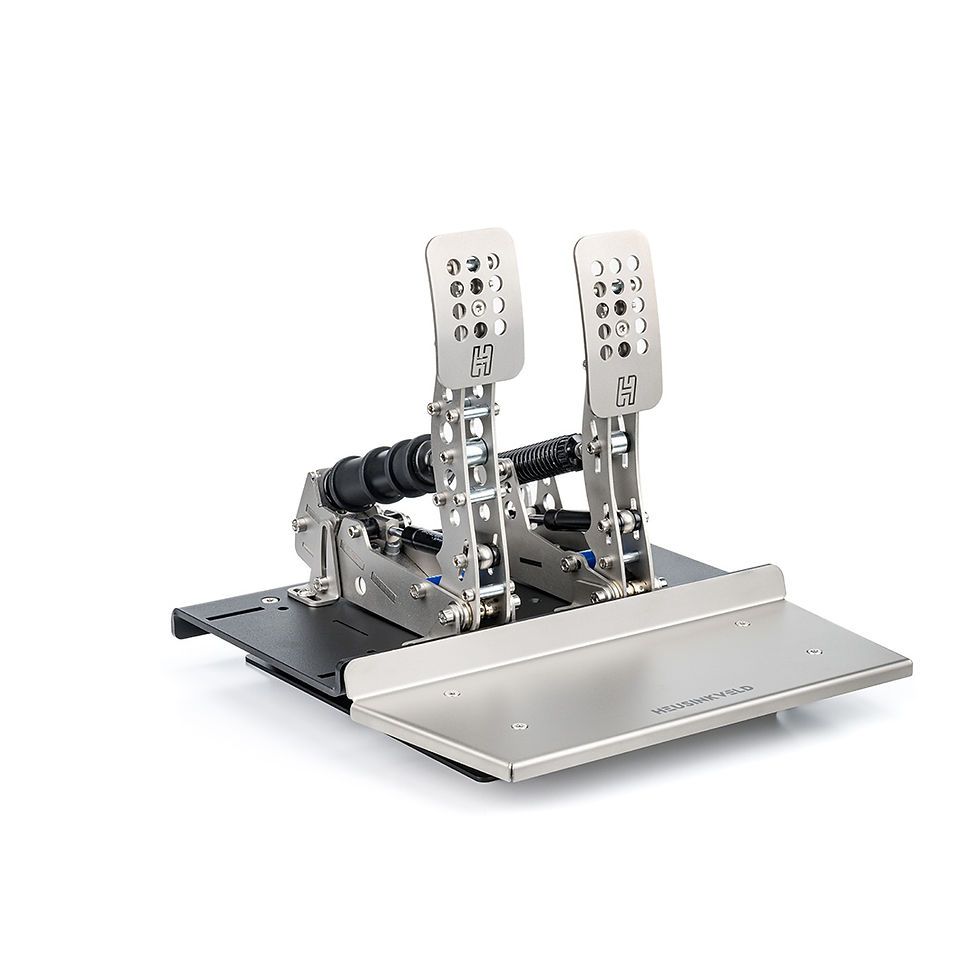

The baseplate assembly consists of multiple elements: The pedal plate on which you mount the pedals, a height adjustable heel plate as well as two brackets which you use to secure the baseplate to your rig.
The controller box of the Ultimate+ pedals can be mounted out of sight at the bottom of the pedal plate. Cable pass-throughs are integrated into both the pedal plate and mounting brackets, allowing you to neatly organize and streamline your setup.
Adjustment options
The baseplate features adjustable slots for each pedal, allowing for lateral positioning. Additionally, each pedal can be fine-tuned forward and backward via the slots in the pedal feet.
Included are t-nuts, below te pedal plate, these t-nuts allow for convenient fine-tuning of each pedal position.
The pedals are mounted in lateral slots which allow every pedal to be adjusted to the left and right. Every single pedal can also be adjusted backwards and forwards through the slots in the pedal feet themselves.
The included t-nuts allow for convenient fine-tuning of the pedal position by slightly loosening the pedal mounting bolts from the top of the pedal plate, now you are able to change the position without having to remove the whole pedal.
The heel plate on the Ultimate+ Baseplate is height adjustable. You can either put it in the default position (0mm elevation), or use the supplied 30mm spacers to raise it to a higher position. This helps you to achieve optimal pedal ergonomics in your simulator.
Mounting
Mounting hardware is supplied to mount the pedals to the baseplate, as well as hardware to mount the baseplate to a 6mm thick underlying plate.
Six mounting points on the brackets are provided in total, giving plenty of options. Mount the baseplate to aluminium profiles or create your own drilling template to install the baseplate to your rig.
Please note that this baseplate does not allow you to install the pedals on a floor without further support, or in a wheel stand where there is no solid connection between the pedals and the seat. A full frame rig/simulator is always required.
Compatibility
Heusinkveld Ultimate+ Baseplate is only compatible with Heusinkveld Ultimate+ pedals (2-pedal set and 3-pedal set) and our Rest Pedal.
FAQ
Please note that this baseplate does not allow you to install the pedals on a floor without further support, or in a wheel stand where there is no solid connection between the pedals and the seat. A full frame rig/simulator is always required.
